GROUT PUMP

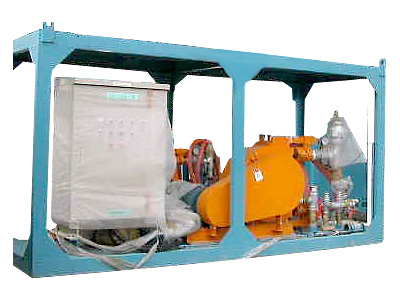

GROUT PUMP UNIT

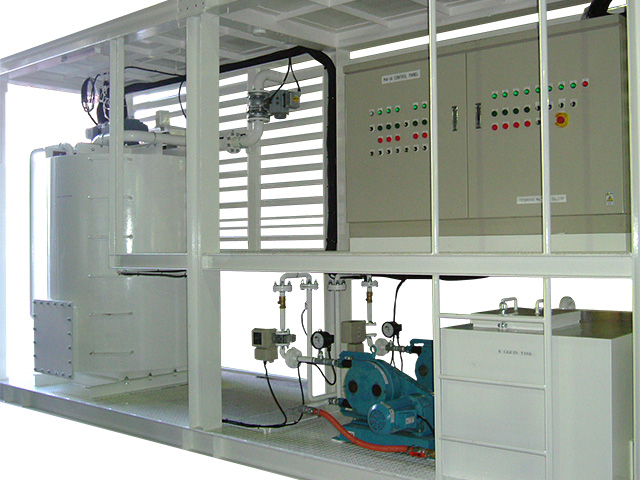

GROUT PUMPS AND AGITATOR IN TUNNEL
GROUT PUMPS AND AGITATOR IN TUNNEL
GROUT PUMPS ON SURFACE
GROUT PUMPS ON SURFACE

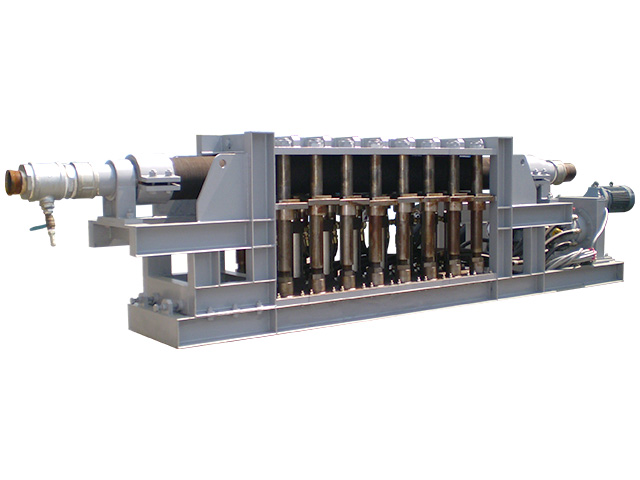

PERISTALTIC PUMP T-150

PERISTALTIC PUMP T-150

SPEC

  • Maximum discharge rate: 800L / min (At no pressure)
  • Maximum discharge pressure: 2.0 MPa
  • Maximum suction pressure: 0.1 MPa
  • Power: AC200-460volt / 45kw
  • Weight: Pump body: 2000kg Hydraulic unit: 700kg

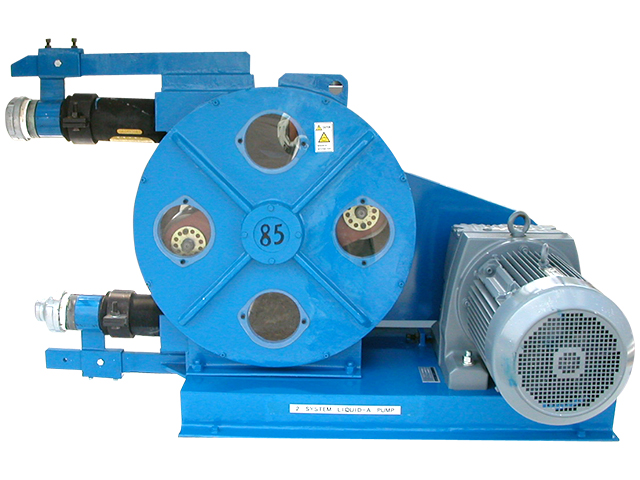

ROTARY PERISTALTIC PUMP T-85

ROTARY PERISTALTIC PUMP T-85

SPEC

  • Maximum discharge rate: 240  400L / min (At no pressure)
  • Maximum discharge pressure: 1.5 – 2.0 MPa
  • Maximum suction pressure: 0.1 MPa
  • Power: AC200-460volt / 15 – 22kw
  • Weight: 1200kg

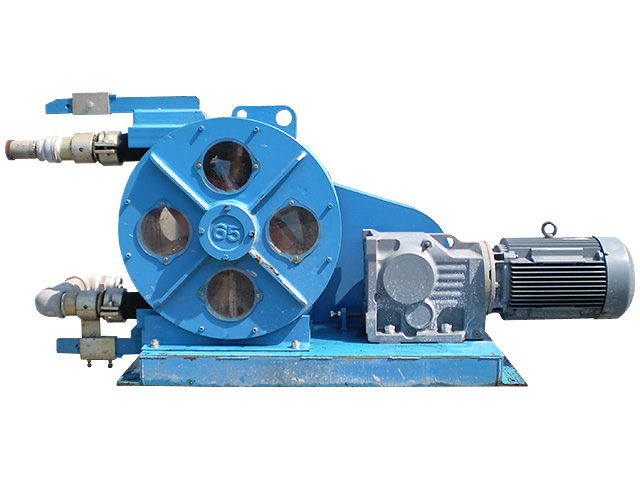

ROTARY PERISTALTIC PUMP T-65

ROTARY PERISTALTIC PUMP T-65

SPEC

  • Maximum discharge rate: 120  140L / min (At no pressure)
  • Maximum discharge pressure: 1.5 – 2.0 MPa
  • Maximum suction pressure: 0.1 MPa
  • Power: AC200-460volt / 11kw
  • Weight: 1000kg

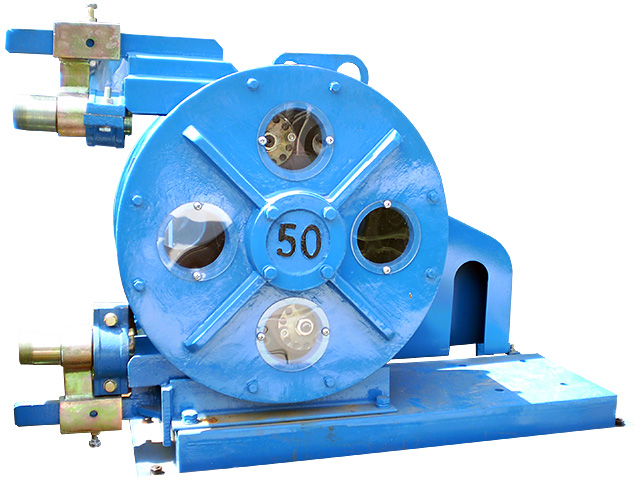

ROTARY PERISTALTIC PUMP T-50

ROTARY PERISTALTIC PUMP T-50

SPEC

  • Maximum discharge rate: 72L / min (At no pressure)
  • Maximum discharge pressure: 1.5 – 2.0 MPa
  • Maximum suction pressure: 0.1 MPa
  • Power: AC200-460volt / 5.5 – 7.5kw
  • Weight: 600kg

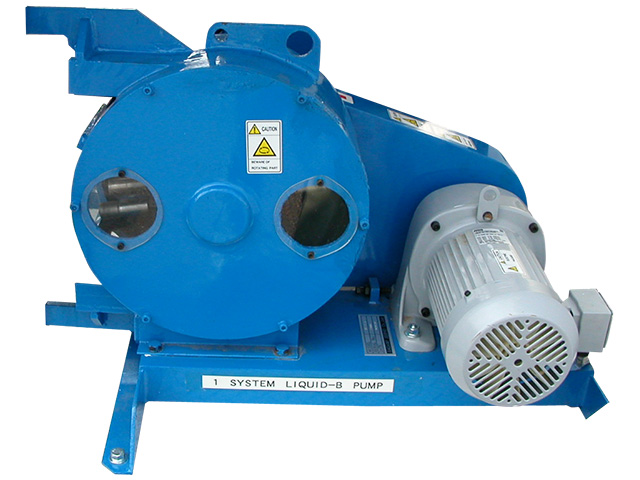

ROTARY PERISTALTIC PUMP T-32

ROTARY PERISTALTIC PUMP T-32

SPEC

  • Maximum discharge rate: 18 – 24L / min (At no pressure)
  • Maximum discharge pressure: 1.5 – 2.0 MPa
  • Maximum suction pressure: 0.1 MPa
  • Power: AC200-460volt / 2.2kw
  • Weight: 240kg
